Parts Diagrams for the LCT AK Kit

Please use these parts descriptions when corresponding with DGA support.

Main Diagram

Sub Assembly Diagrams

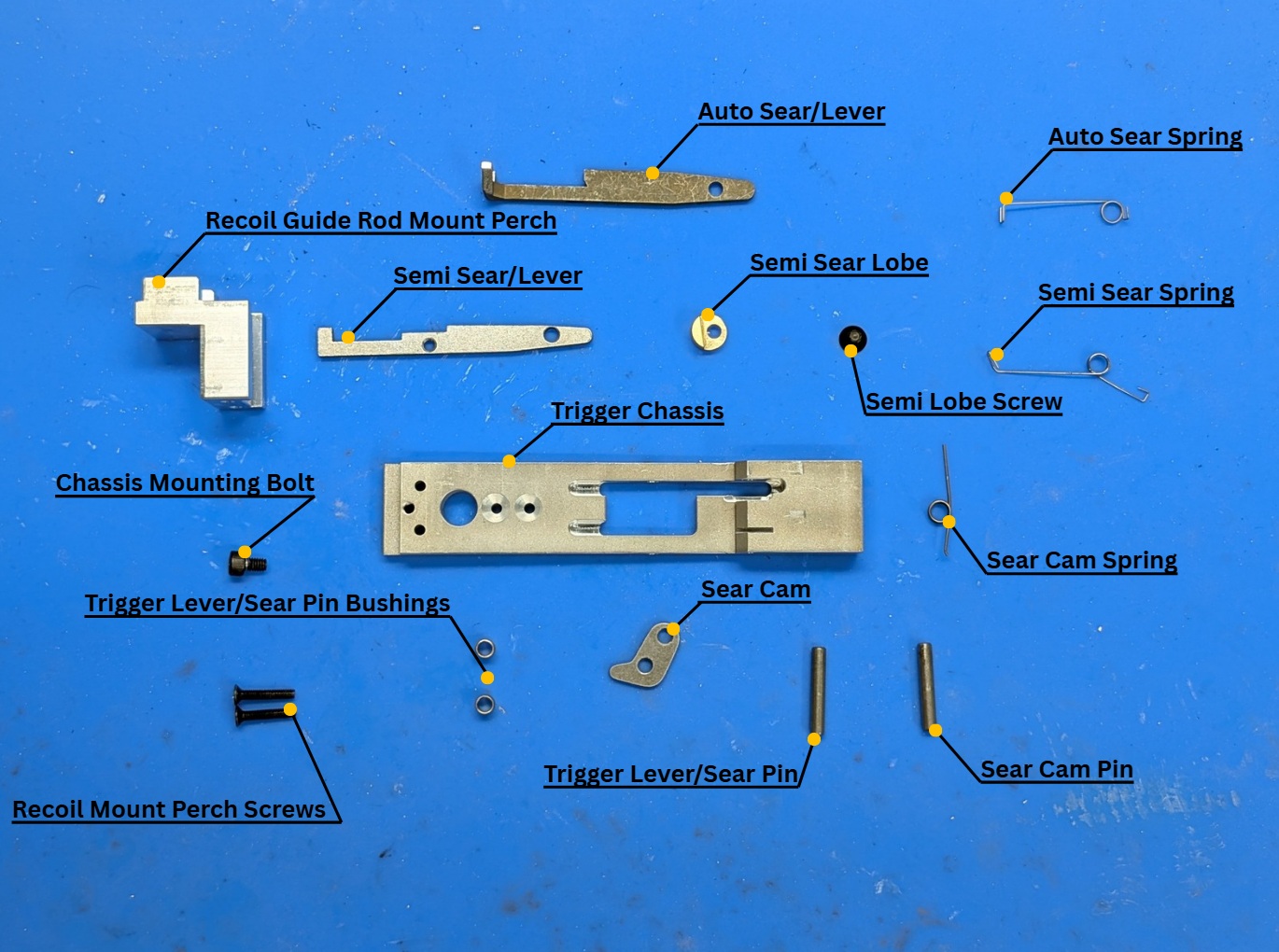

Trigger Chassis Assembly

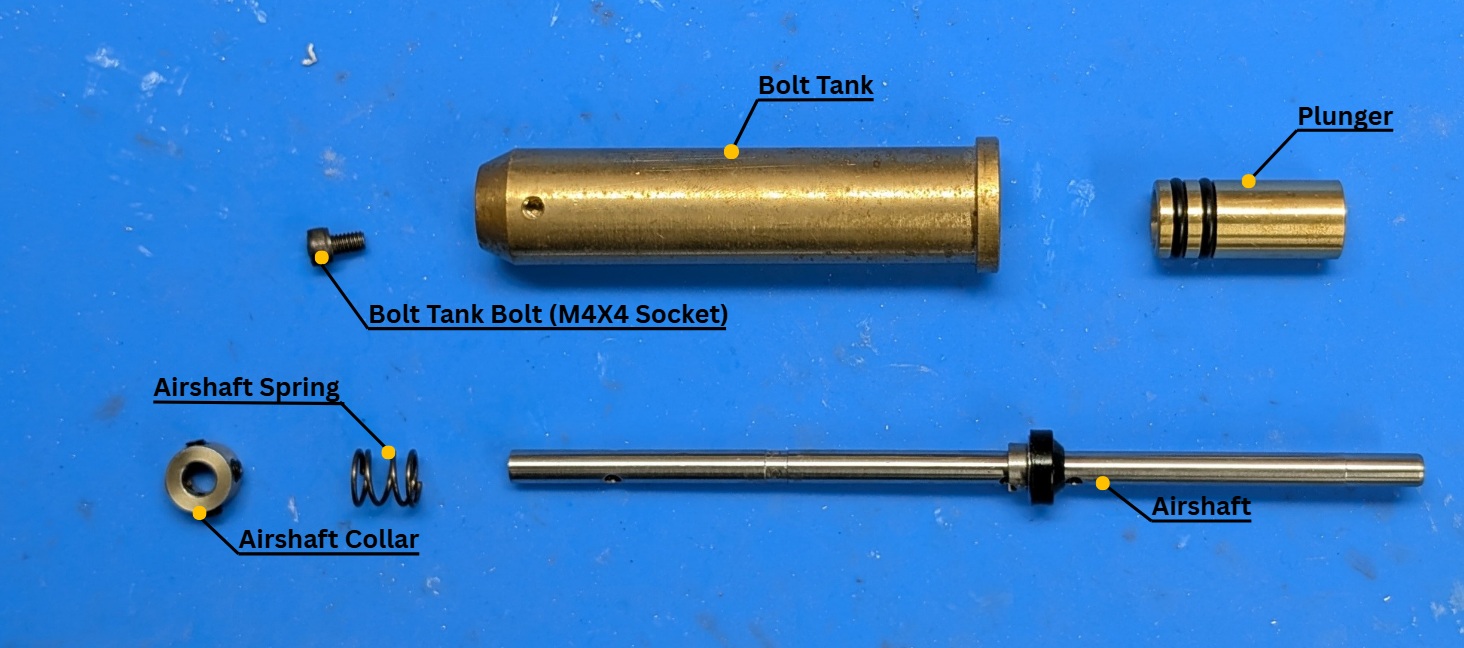

Bolt Tank Assembly

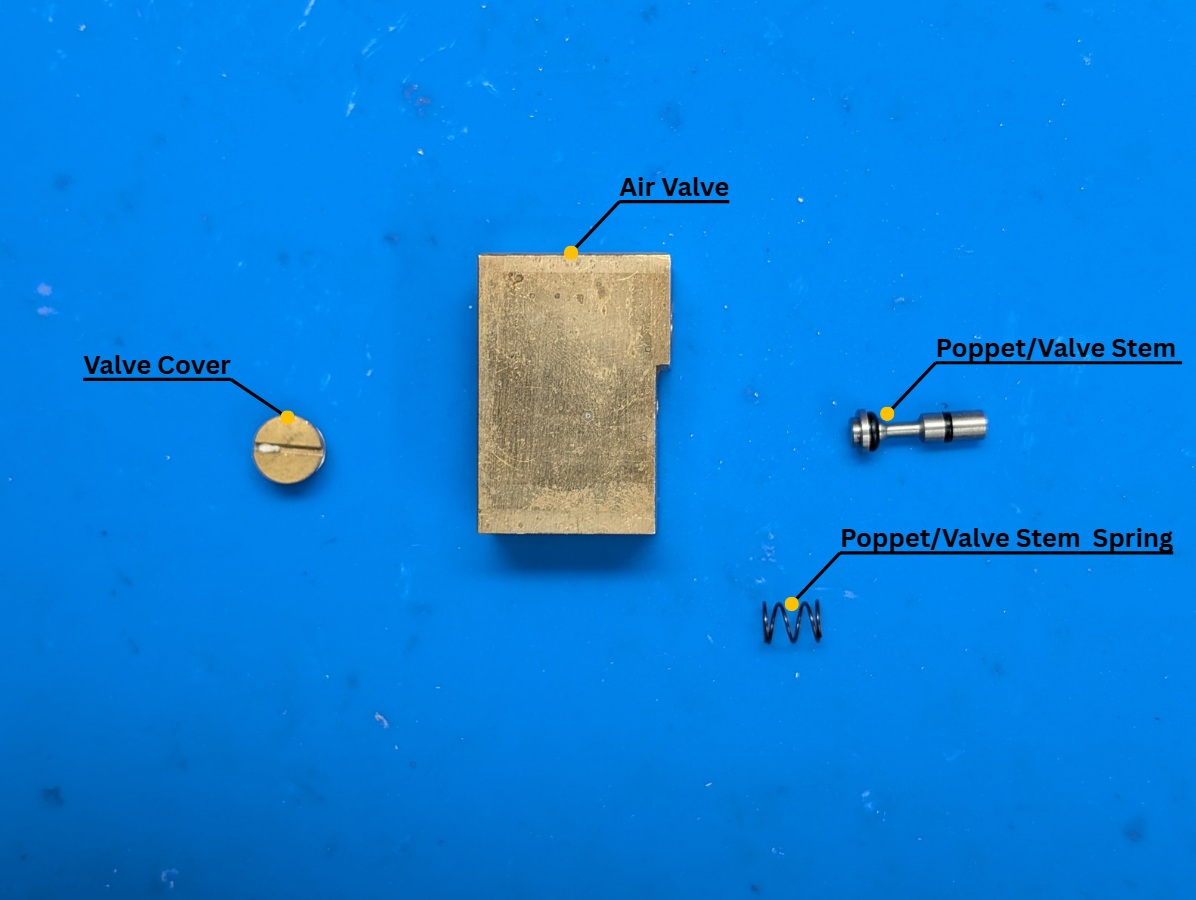

Air Valve Assembly

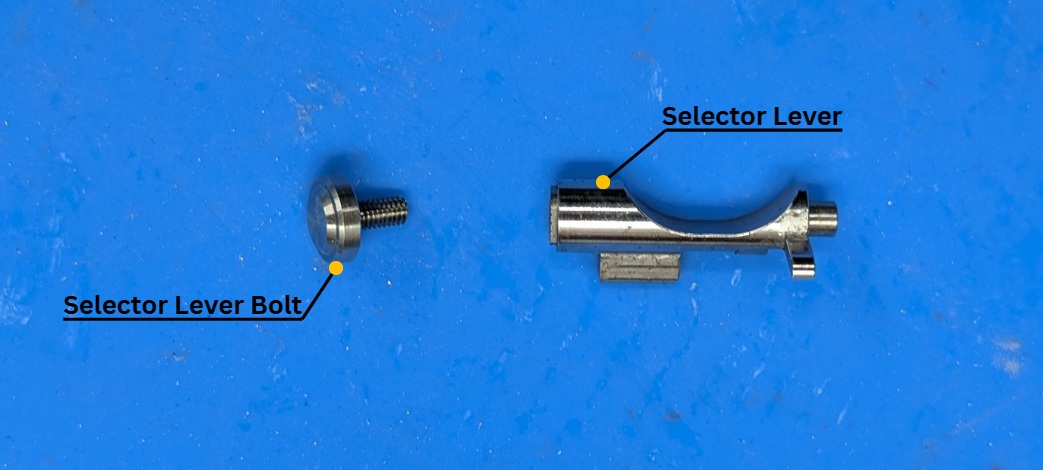

Selector Assembly

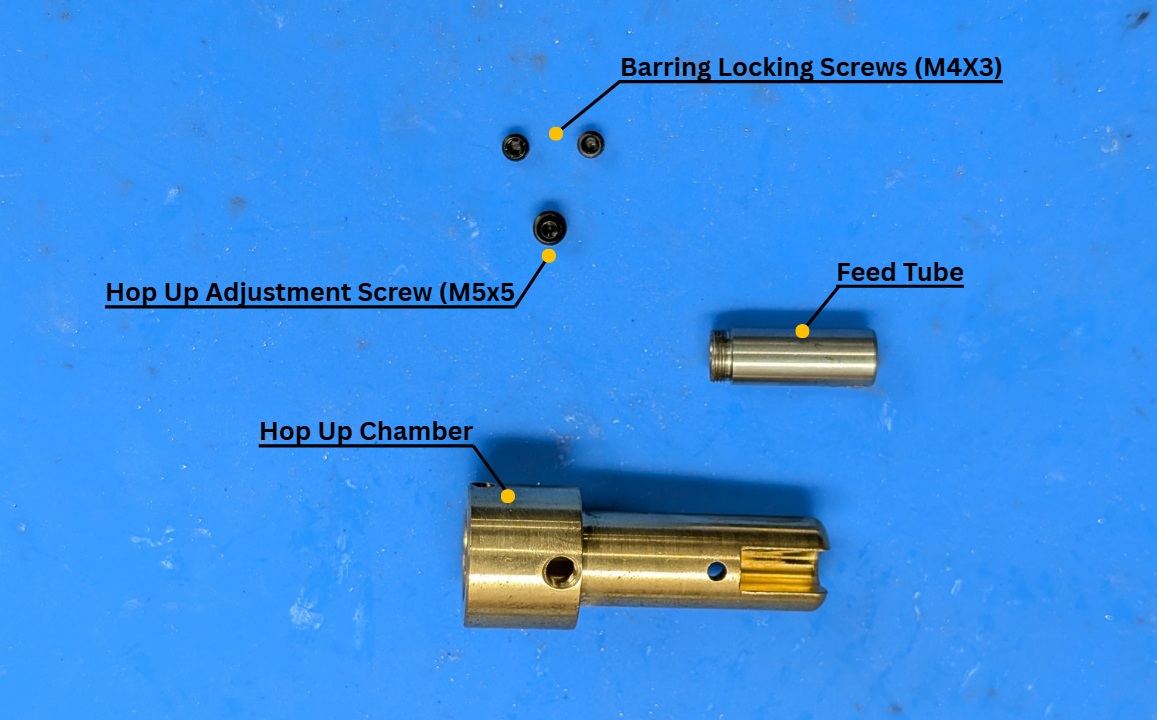

Hop Up Chamber Assembly

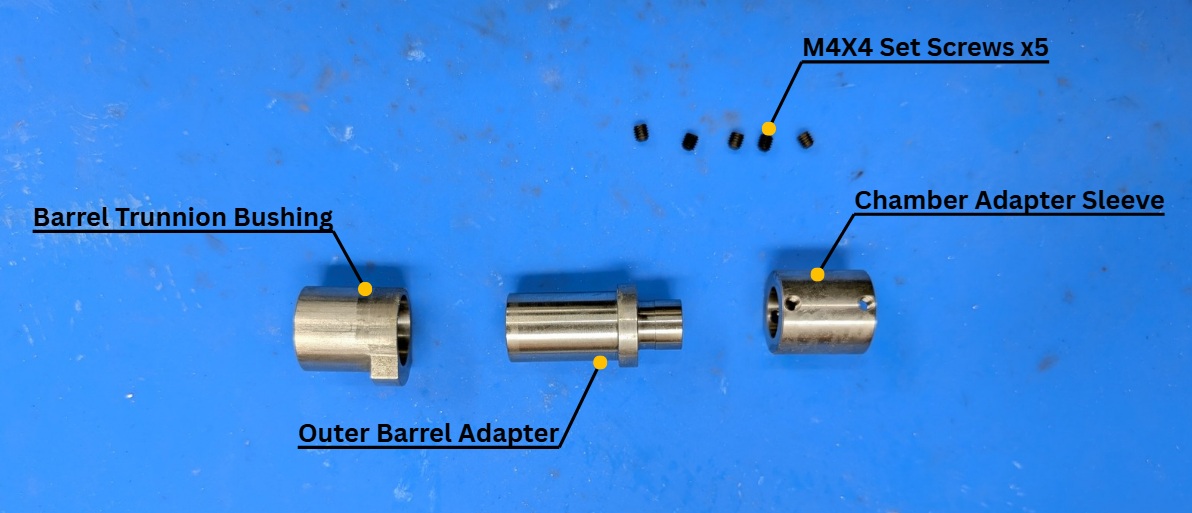

Barrel Adapter Assembly

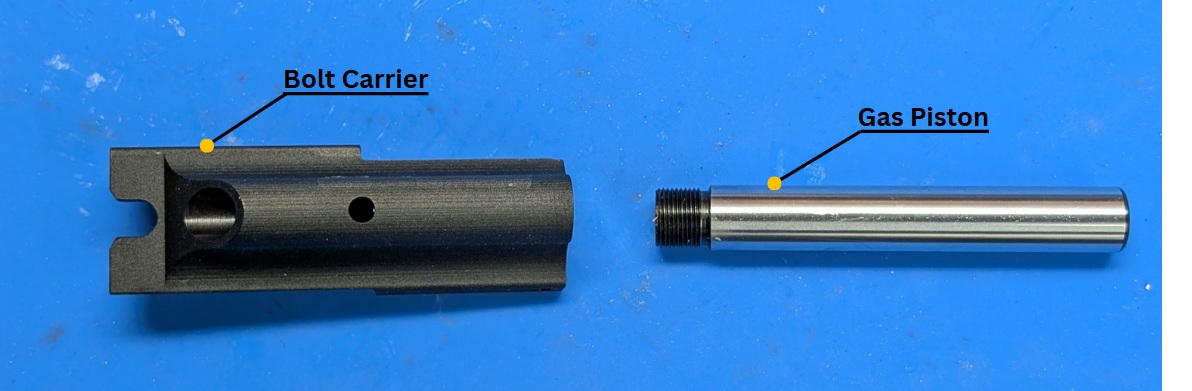

Bolt Carrier Assembly
